Ambient Lighting Module Connector - C3347

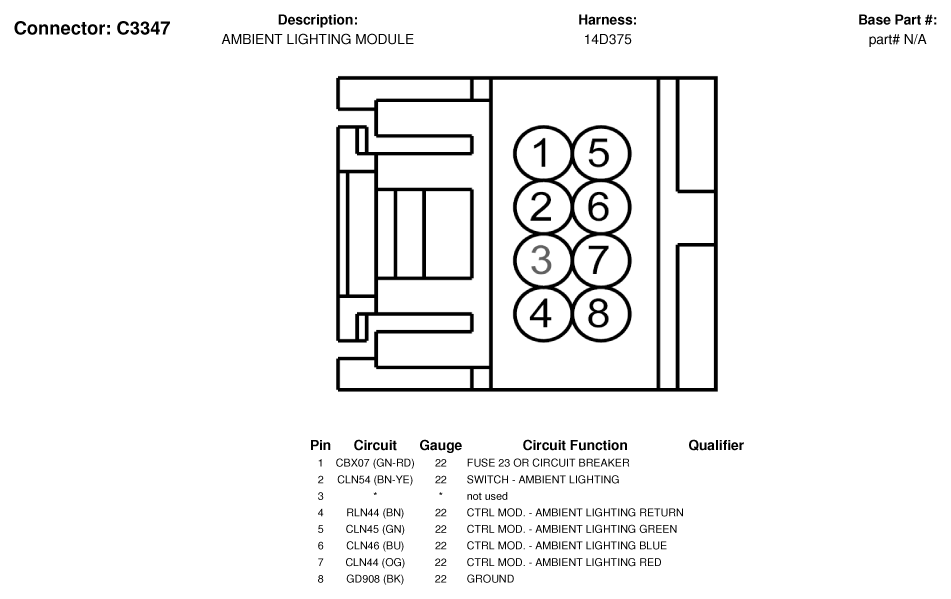

Fig 1: Ambient Lighting Module Connector End View (C3347)

G07335441

Courtesy of FORD MOTOR CO.
