Without Remote Audio Controls

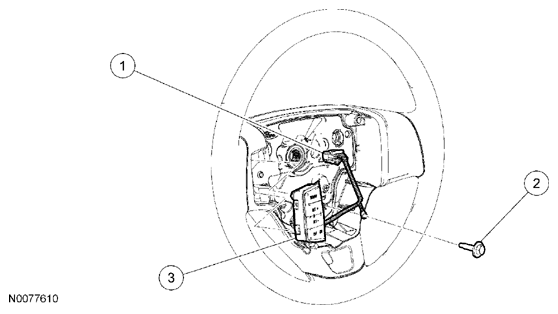

Fig 1: Cruise Control Switch, Screw And Connector (Without Remote Audio Controls)
G07805256Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Cruise control switches electrical connector (part of 9C888)
2 - Cruise control switches ground screw
3 9C888 Cruise control switches
