Intake Manifold Runner Control Module Connector - C1286

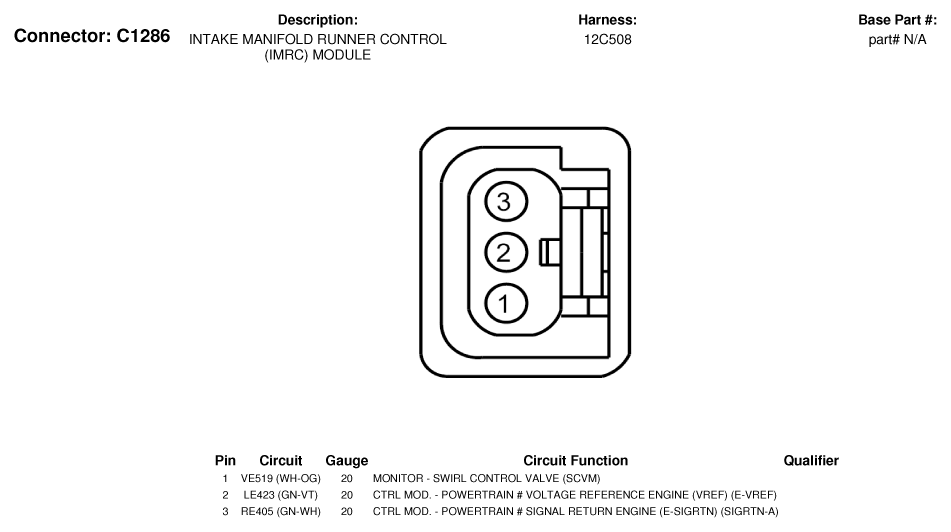

Fig 1: Intake Manifold Runner Control Module Connector End View (C1286)

G07335401

Courtesy of FORD MOTOR CO.
