Wheel Speed Sensor - Front: Notes

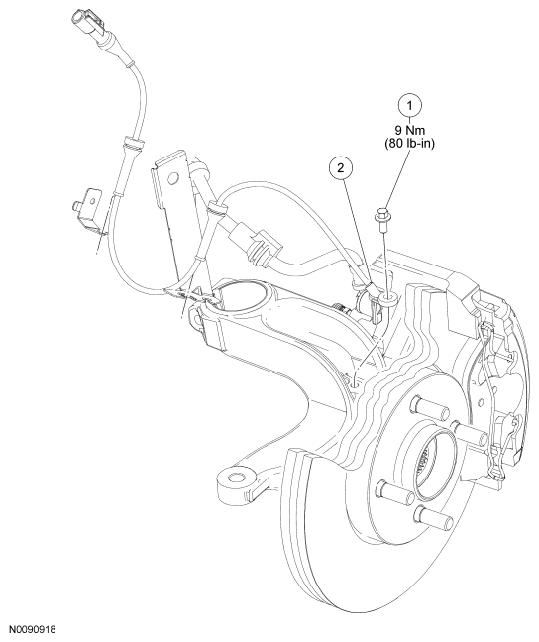

Fig 1: Wheel Speed Sensor With Mounting Bolt - Front
G06438616Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor bolt (part of 2C204)
2 2C204 Wheel speed sensor
