Smart Junction Box (SJB)
NOTE:
SJB is located behind dash. See Fig 1.

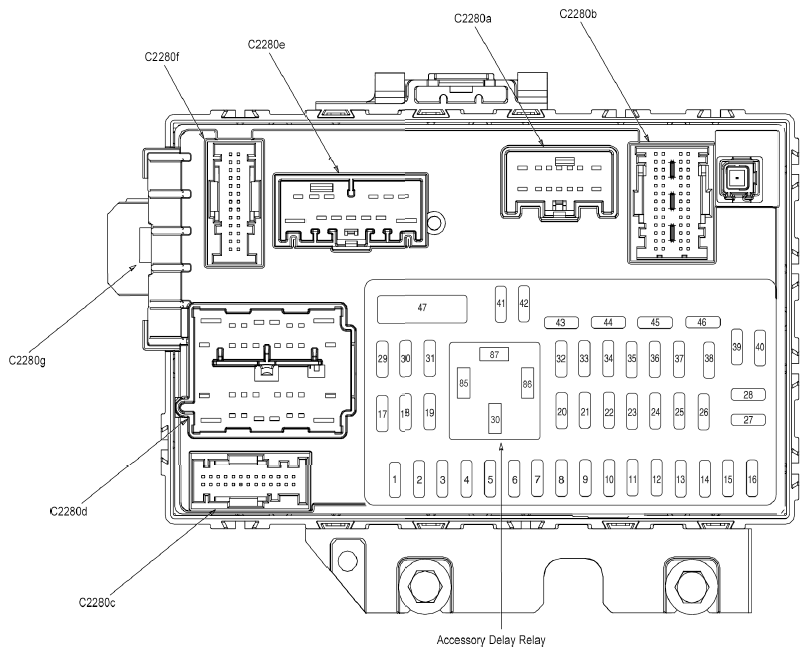

SMART JUNCTION BOX (SJB) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |
SMART JUNCTION BOX (SJB) FUSE IDENTIFICATION LEGEND
| Fuse/Relay Location | Fuse Amp Rating | Smart Junction Box Description |
|---|---|---|
| 1 | 30A | Not Used (SPARE) |
| 2 | 15A | Brake Pedal Position Switch, |
| 3 | 15A | Not Used (SPARE) |
| 4 | 30A | Not Used (SPARE) |
| 5 | 10A | Floor Shifter |
| 6 | 20A | Park/Stop/Turn lamp, LR and RR, Park/Turn lamp, LF and RF |
| 7 | 10A | Low Beam, Headlamp Left |
| 8 | 10A | Low Beam, Headlamp Right |
| 9 | 15A | Interior/Map Lamps Assembly, Front |
| 10 | 15A | Panel Illumination |
| 11 | 10A | Not Used (SPARE) |
| 12 | 7.5A | Exterior Rear View Mirror Switch |
| 13 | 5A | Accessory Protocol Interface Module (APIM) |
| 14 | 10A | Not Used (SPARE) |
| 15 | 10A | HVAC Module |
| 16 | 15A | Global Positioning System Module (GPSM) |
| 17 | 20A | All Lock Relay, All Unlock Relay, Driver Unlock Relay, Luggage Compartment Lid Release Relay |
| 18 | 20A | Heated Seat Relays, Driver and Passenger |
| 19 | 25A | Roof Opening Panel Module |
| 20 | 15A | Data Link Connector (DLC) |
| 21 | 15A | Fog Lamp Relay |
| 22 | 15A | Park Lamp Relay |
| 23 | 15A | High Beam Relay, Headlamps |
| 24 | 20A | Horn Relay |
| 25 | 10A | Battery Saver Relay |
| 26 | 10A | Instrument Cluster |
| 27 | 20A | Ignition Switch |
| 28 | 5A | Audio Control Module (ACM) |
| 29 | 5A | Instrument Cluster (IC) |
| 30 | 5A | Not Used (SPARE) |
| 31 | 10A | Not used (SPARE) |
| 32 | 10A | Restraints Control Module (RCM) |
| 33 | 10A | Not Used (SPARE) |
| 34 | 5A | Not Used (SPARE) |
| 35 | 10A | Anti-Lock Brake System (ABS) Module |
| 36 | 5A | Passive Anti-Theft Transceiver Module |
| 37 | 10A | HVAC Module |
| 38 | 20A | Subwoofer Amplifier |
| 39 | 20A | Audio Control Module (ACM), Front Control Interface Module (FCIM), Front Display Interface Module (FDIM) |
| 40 | 20A | Not Used (SPARE) |
| 41 | 15A | Ambient Lighting Module, Roof Opening Panel Control Switch, Electrochromatic Inside Mirror Unit, Driver and Passenger Door Lock Switch Illumination, PAD Indicator/Traction Control/Ambient Lighting Switch |
| 42 | 10A | Not Used (SPARE) |
| 43 | 10A | Heated Seats |
| 44 | 10A | Not Used (SPARE) |
| 45 | 5A | Wiper Power Relay |
| 46 | 7.5A | Occupant Classification System (OCS) Module, PAD Indicator/Traction Control/Ambient Lighting Switch |
| 47 | 30A C.B. | Roof Opening Panel Module, Master Window Control Switch |
