Gearshift Lever
Removal and Installation

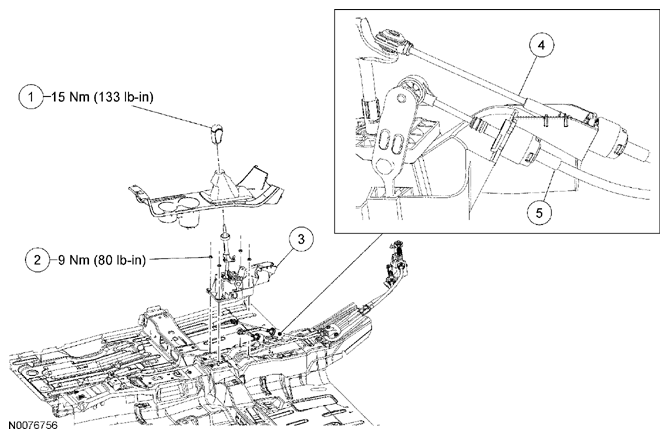

| Item | Part Number | Description |
|---|---|---|
| 1 | 7217 | Gearshift knob |
| 2 | - | Gearshift lever nut (4 required) |
| 3 | 7K387 | Gearshift lever |
| 4 | 7E395 | Shift cable (part of 7E395 assembly) |
| 5 | 7E395 | Selector cable (part of 7E395 assembly) |
- Remove the gearshift lever knob.
- To install, tighten to 15 Nm (133 lb-in).
- Remove the floor console. For additional information, refer to BODY PANEL SYSTEM - FRONT END BODY PANELS article.
- Remove the shift cable ends from the gearshift levers in the following sequence.
- Carefully pry the gearshift cables from the shift levers.
- Pull back on abutment sleeve and lift cable out of shifter.

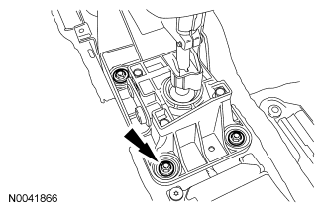

- Remove the 4 gearshift lever bolts and the gearshift lever.
- To install, tighten to 9 Nm (80 lb-in).
- To install, reverse the removal procedure.
- Adjust the gearshift cables. For additional information, refer to MANUAL TRANSMISSION - MANUAL TRANSAXLE/TRANSMISSION AND CLUTCH SYSTEM - GENERAL INFORMATION article.
