Side Impact Sensor - Front Door: Notes

NOTE: RH shown in the illustration, LH similar.

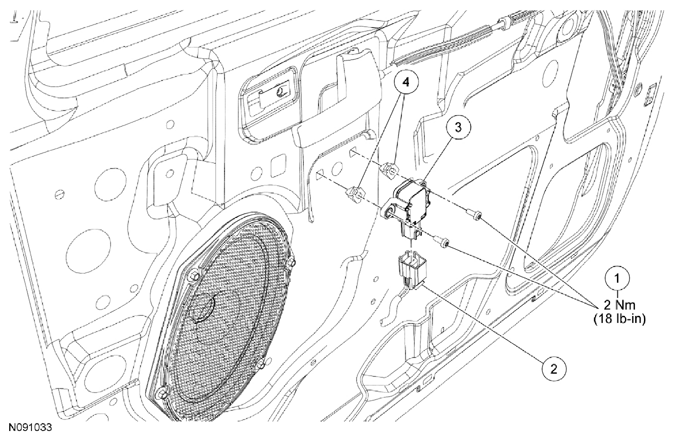

Fig 1: Front Side Impact Sensor, Electrical Connector And Bolts With Torque Specifications
G07805831Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W712191 Side impact sensor bolts
2 - Side impact sensor electrical connector (part of 14630)
3 14C676 Side impact sensor (pressure sensor)
4 W710564 Insert nuts
