Transmission Range Sensor Connector - C167

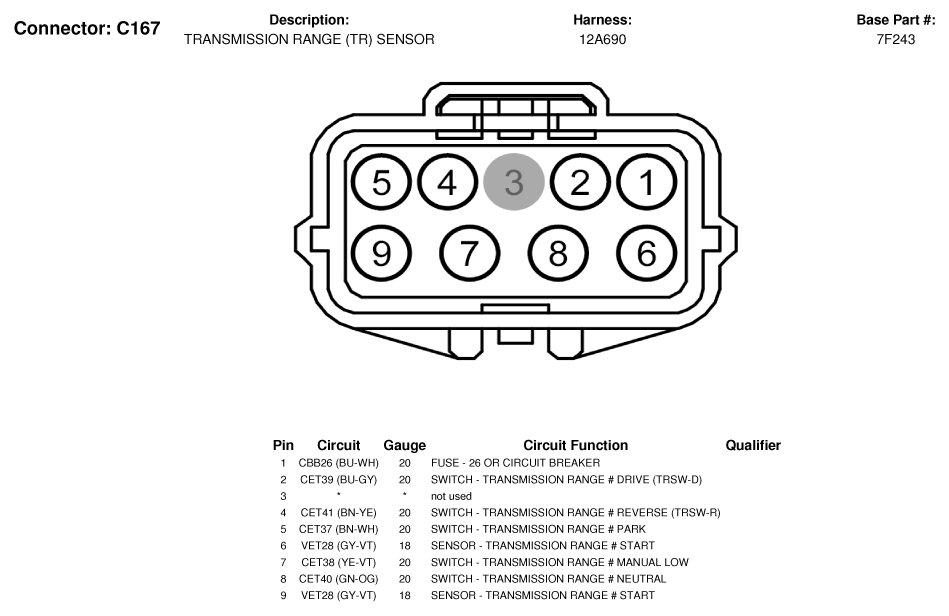

Fig 1: Transmission Range Sensor Connector End View (C167)

G07335267

Courtesy of FORD MOTOR CO.
