Driver Seat Position Sensor Connector - C356

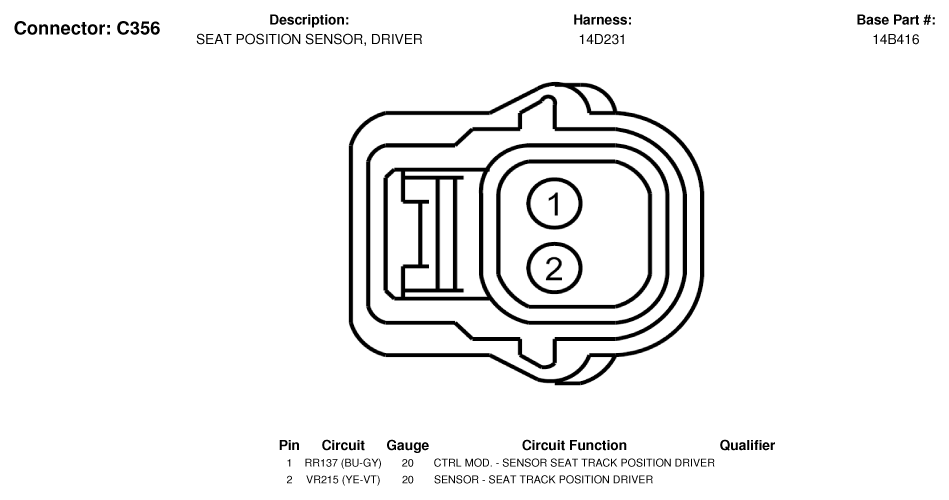

Fig 1: Driver Seat Position Sensor Connector End View (C356)

G07335324

Courtesy of FORD MOTOR CO.
