Air Conditioning (A/C) Compressor: Notes

MATERIAL

Item	Specification
Motorcraft® PAG Refrigerant Compressor Oil YN-12-D	WSH-M1C231-B

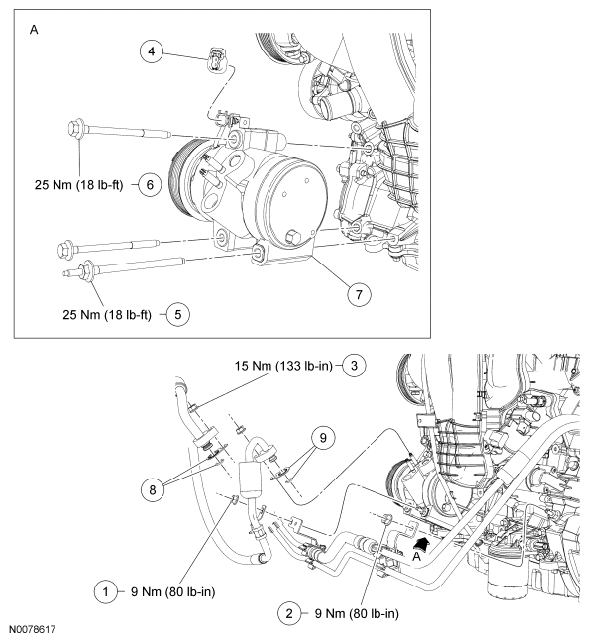

Fig 1: Exploded View Of Air Conditioning (A/C) Compressor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520101	Compressor-to-condenser discharge line bracket nut
2	W520101	Power steering line bracket nut
3	W520413	A/C compressor fitting nut (2 required) (suction and discharge)
4	-	Clutch field coil electrical connector (part of 12A690)
5	W790024	A/C compressor stud-bolt
6	W713281	A/C compressor bolt (2 required)
7	19703	A/C compressor
8	19B596	O-ring seal and gasket seal kit
9	19B596	O-ring seal and gasket seal kit
