Valve Stem Diameter

NOTE: Refer to the appropriate ENGINE MECHANICAL - 2.0L article for the specification.
  1. Measure the diameter of each intake and exhaust valve stem at the points shown in the illustration. Verify the diameter is within specification.

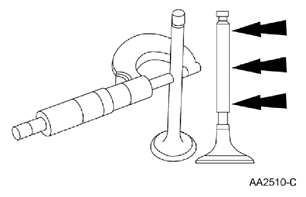

Fig 1: Measuring Valve Stem Diameter
G07802751Courtesy of FORD MOTOR CO.
