Seat - Front: Notes

NOTE: LH shown in the illustration, RH similar.

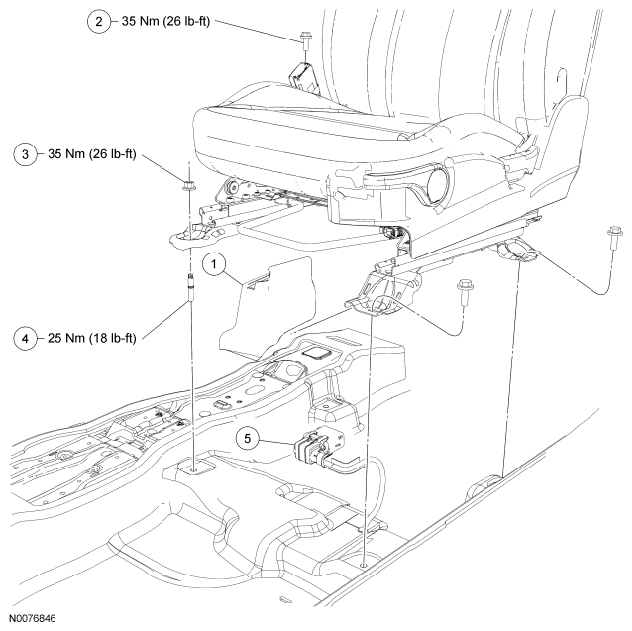

Fig 1: Exploded View Of Front Seat With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	61749	Seat track trim cover
2	W708175	Seat bolt (3 required)
3	N802068	Seat nut
4	W713480	Seat stud
5	-	Electrical connector (part of 14A005)
