Power Distribution

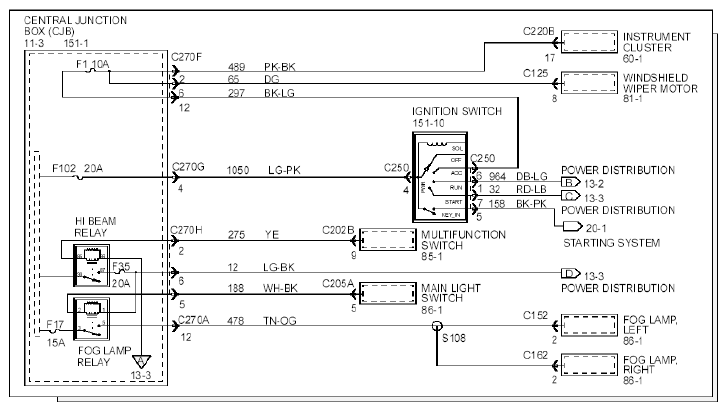

See appropriate OEM WIRING DIAGRAMS - POWER DISTRIBUTION article which shows the current feed circuits. The current path is shown from the battery to the ignition switch and to all fuses. It also shows the circuits protected by each fuse. The circuit is traced from the fuse to the component. All details (wires, splices, connectors) between the fuse and the first component are shown in illustration.
