Transaxle Cooling

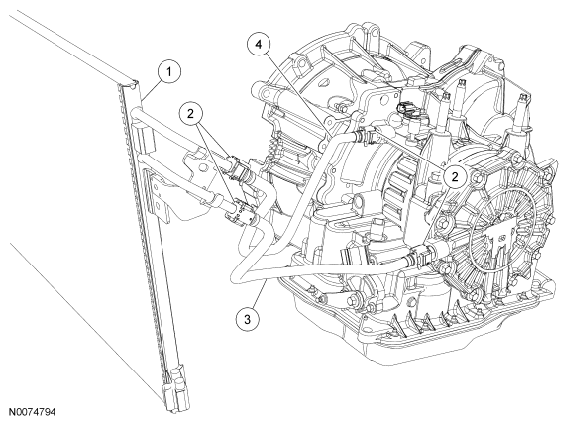

Fig 1: Transmission Fluid Cooler With Fluid Cooler Inlet And Outlet Tubes
G06440144Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19E908 Transmission fluid cooler
2 7J081 Secondary latches
3 7890A Transmission fluid cooler outlet tube
4 7890B Transmission fluid cooler inlet tube
