Right Rear Window Control Switch Connector - C801
Right Rear Window Control Switch Connector - C801

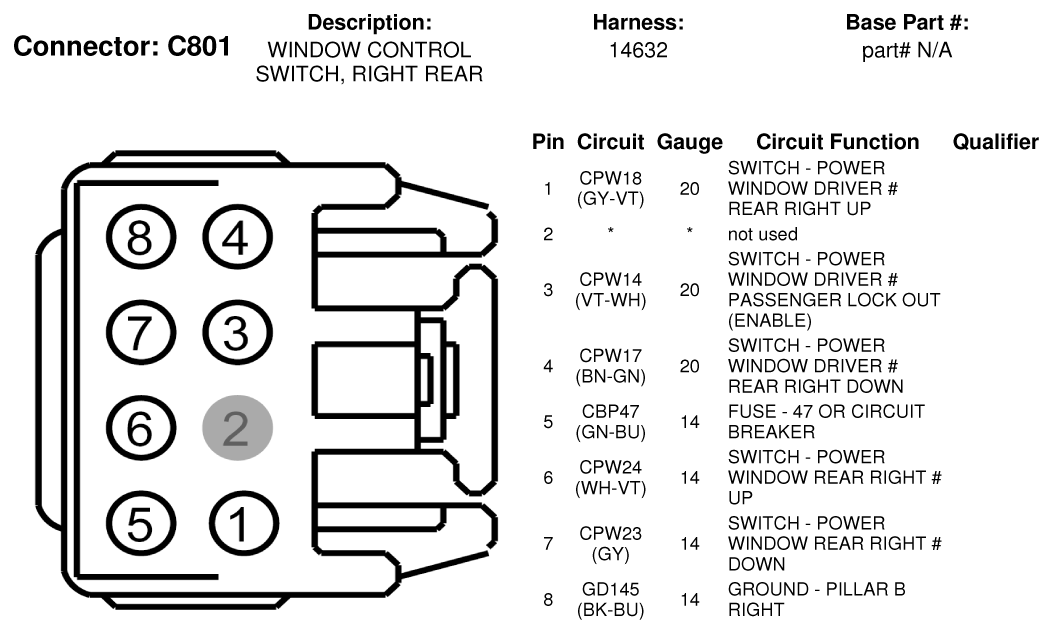

Fig 1: Right Rear Window Control Switch Connector End View (C801)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
