Message Center Switch Connector - C269

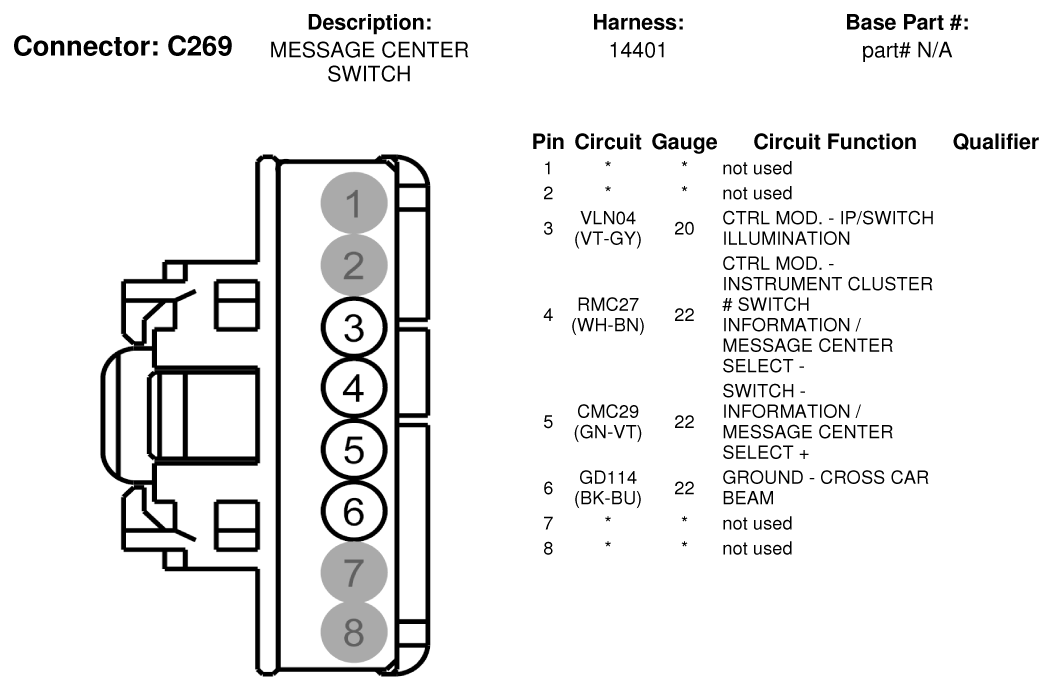

Fig 1: Message Center Switch Connector End View (C269)

G07334853

Courtesy of FORD MOTOR CO.
