Liftgate Release Switch Connector - C4353

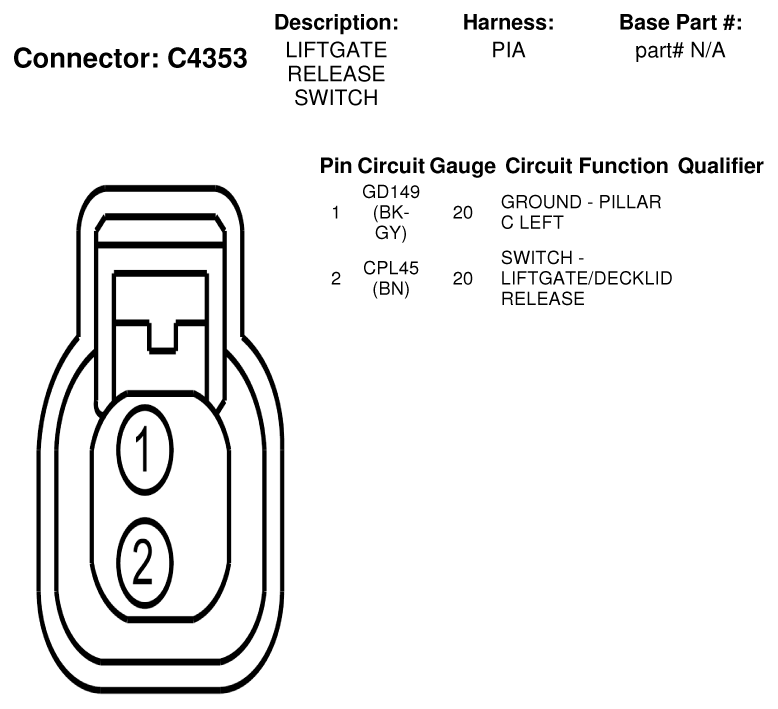

Fig 1: Liftgate Release Switch Connector End View (C4353)

G07335203

Courtesy of FORD MOTOR CO.
