Liftgate Latch Assembly Connector - C4185

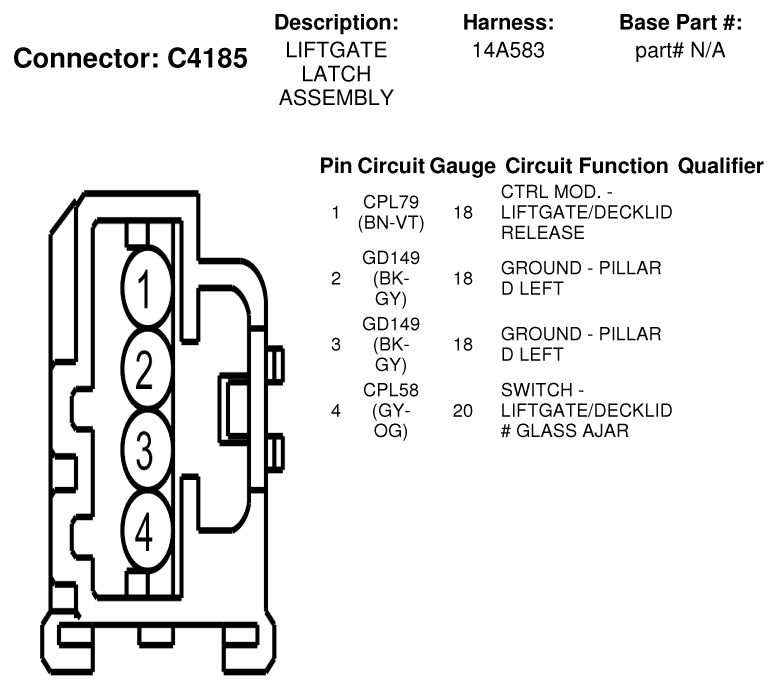

Fig 1: Liftgate Latch Assembly Connector End View (C4185)

G07335180

Courtesy of FORD MOTOR CO.
