Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector - C4339

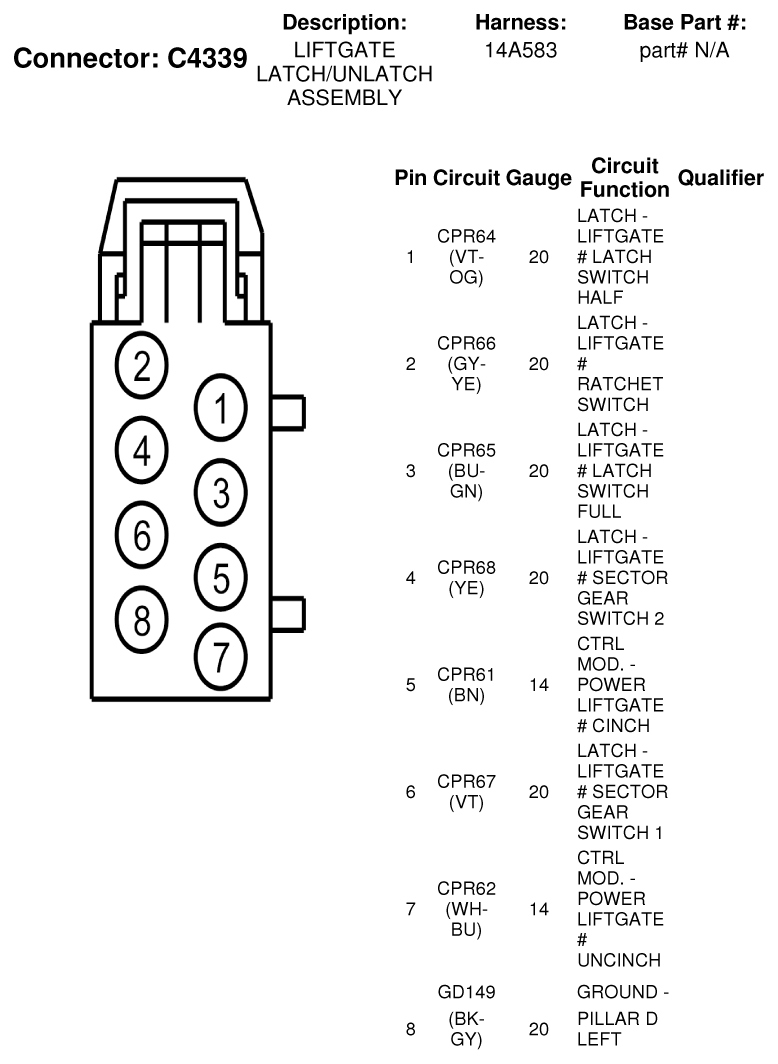

Fig 1: Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector End View (C4339)

G07335201

Courtesy of FORD MOTOR CO.
