Left Second Row Seat Control Switch Connector - C3343
Left Second Row Seat Control Switch Connector - C3343

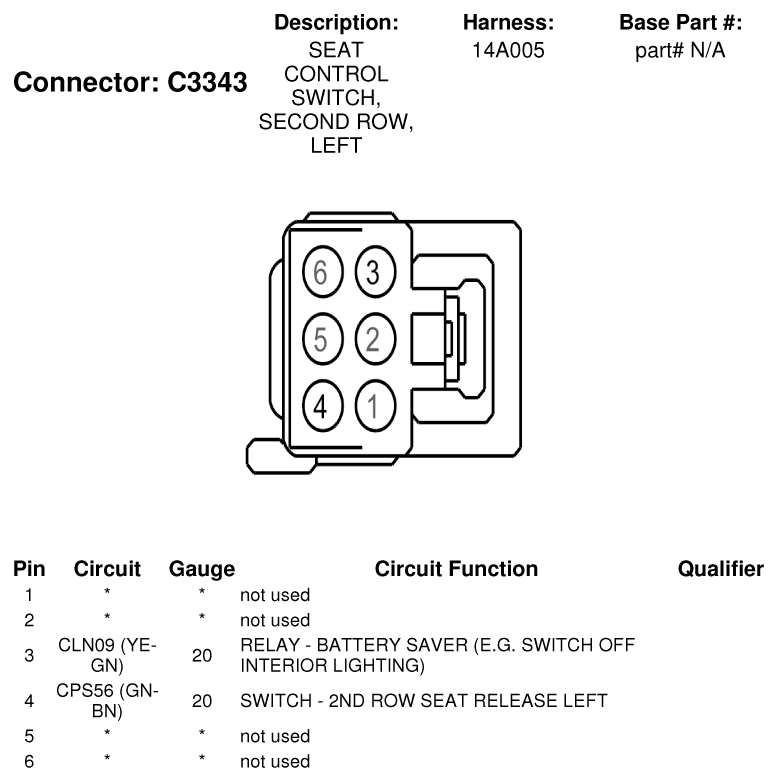

Fig 1: Left Second Row Seat Control Switch Connector End View (C3343)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
