Left Front Impact Sensor Connector - C1465
Left Front Impact Sensor Connector - C1465

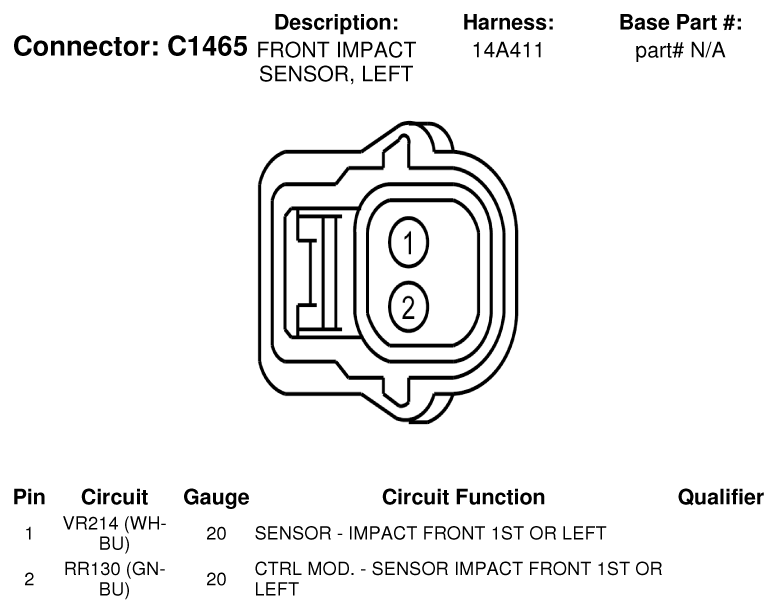

Fig 1: Left Front Impact Sensor Connector End View (C1465)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
