Console - Overhead: Notes

NOTE: Overhead console with roof opening panel is shown in the illustration, overhead console without roof opening panel is similar.

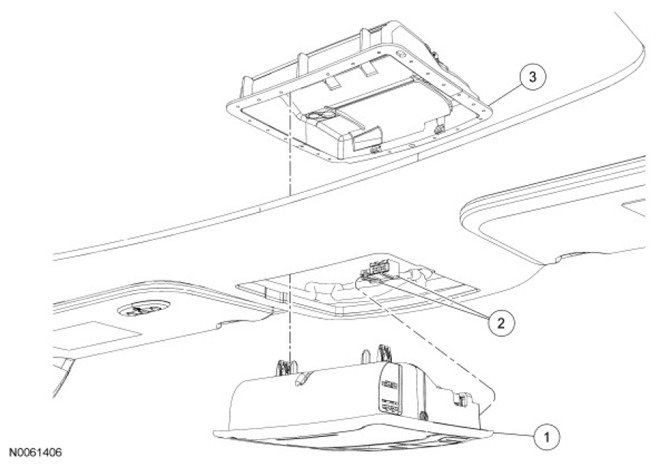

Fig 1: Exploded View Of Overhead Console, Electrical Connectors And Bracket

Courtesy of FORD MOTOR CO.

CONSOLE PARTS DESCRIPTION CHART

Item	Part Number	Description
1	519A70	Overhead console
2	-	Overhead console electrical connectors
3	045B34	Overhead console bracket
