Global Positioning System Module Connector - C2140

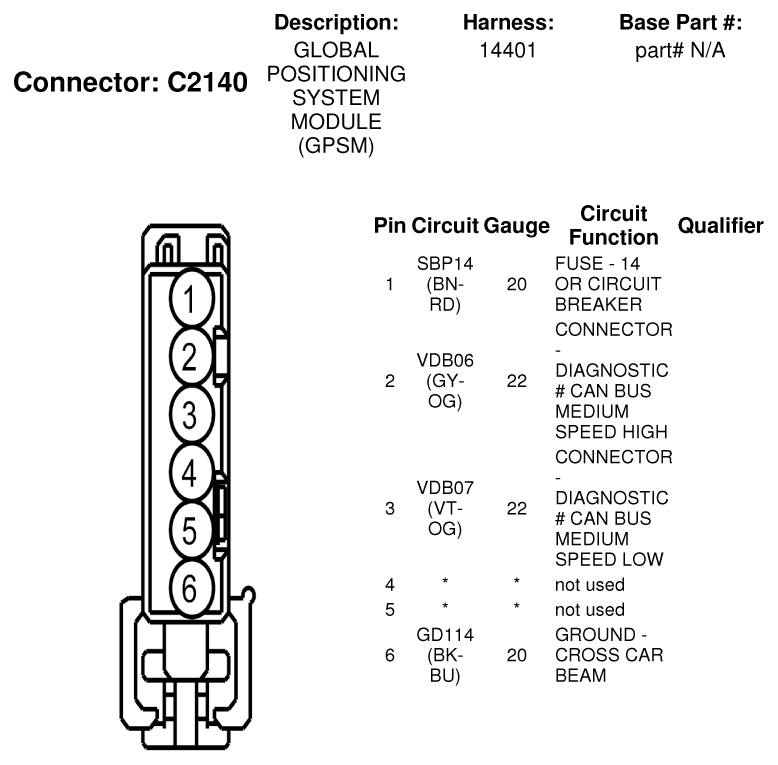

Fig 1: Global Positioning System Module Connector End View (C2140)

G07335051

Courtesy of FORD MOTOR CO.
