Four Wheel Drive Control Module Connector - C281
Four Wheel Drive Control Module Connector - C281

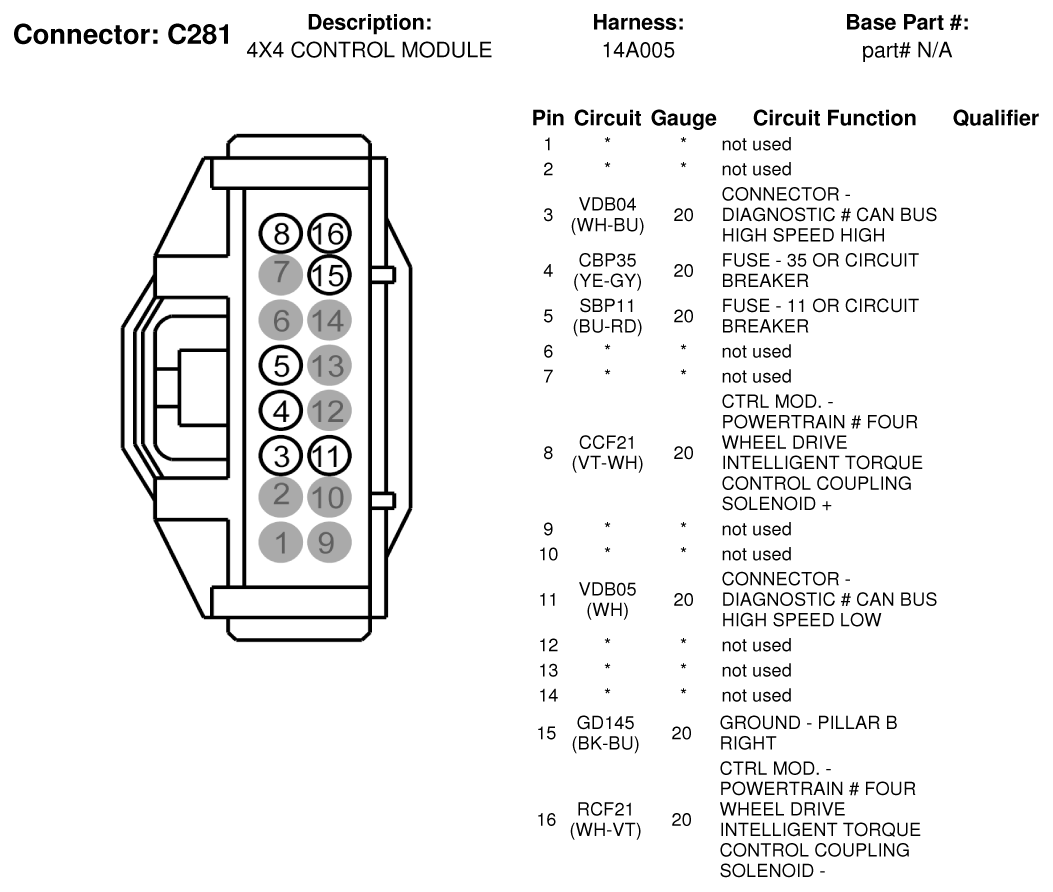

Fig 1: Four Wheel Drive Control Module Connector End View (C281)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
