Console Refrigeration Module Connector - C3415

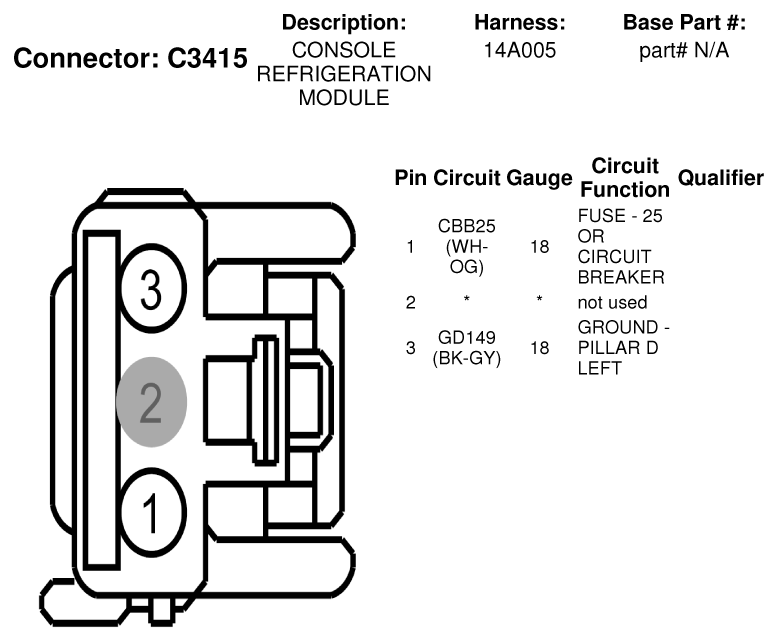

Fig 1: Console Refrigeration Module Connector End View (C3415)

G07335163

Courtesy of FORD MOTOR CO.
