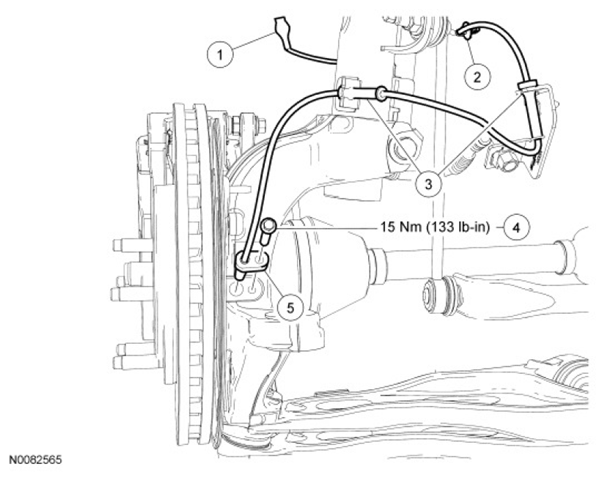

Wheel Speed Sensor - Front: Notes
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wheel speed sensor electrical connector (part of 2C204) |
| 2 | - | Wheel speed sensor harness pin-type retainer (part of 2C204) |
| 3 | - | Wheel speed sensor harness retainers (part of 2C204) (2 required) |
| 4 | W505255 | Wheel speed sensor bolt |
| 5 | 2C204 | Wheel speed sensor |
