Steering Wheel Rotation Sensor: Notes

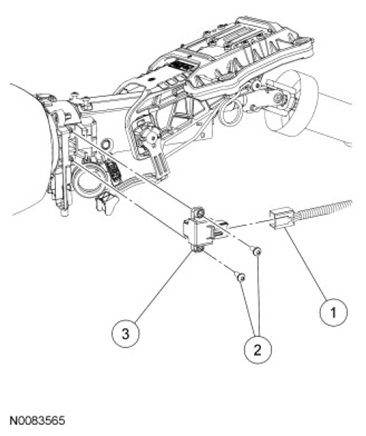

Fig 1: Exploded View Of Steering Wheel Rotation Sensor, Electrical Connector And Bolts
G07463285Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Steering wheel rotation sensor electrical connector (part of 14489)
2 W506942 Steering wheel rotation sensor bolts (2 required)
3 3F818 Steering wheel rotation sensor
