Cushion, Power
NOTE:

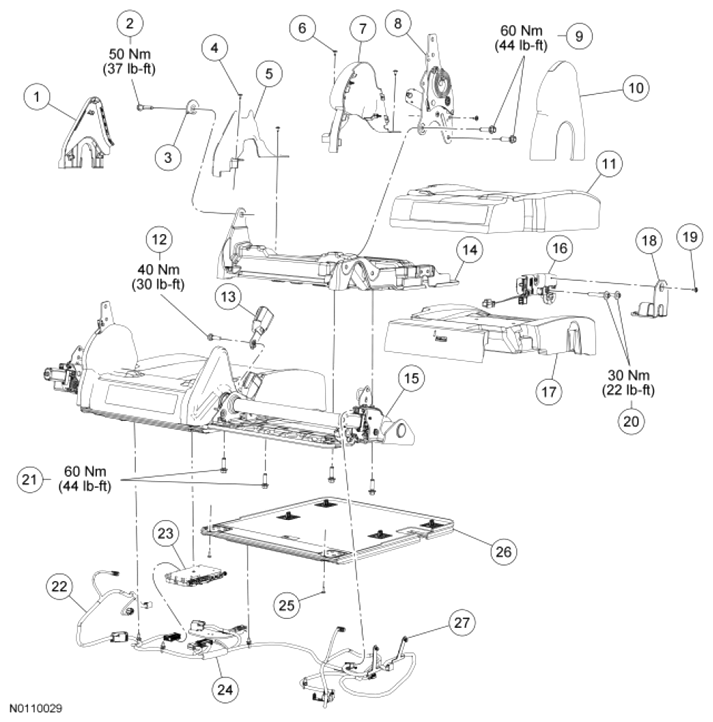

RH shown in illustration, LH similar.
THIRD ROW SEAT PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 61348 | Outboard pivot cover |
| 2 | W714465 | Pivot bolt |
| 3 | 613B44 | Bushing |
| 4 | 56910 | Screw (2 required) |
| 5 | 61348 | Inboard pivot cover |
| 6 | 56910 | Screw (3 required) |
| 7 | 67460 | Backrest latch inboard cover |
| 8 | 613D60 | Backrest latch, power |
| 9 | W714278 | Backrest latch-to-cushion frame bolts (2 required) |
| 10 | 67460 | Backrest latch outboard cover |
| 11 | 63804 | Cushion cover |
| 12 | W707957 | Safety belt buckle bolt (part of 613D48) |
| 13 | 613D48 | Safety belt buckle |
| 14 | 63160 | Cushion frame |
| 15 | 613B90 | Pivot tube assembly, power |
| 16 | 61142 | Floor latch assembly, power |
| 17 | 63841 | Cushion foam pad |
| 18 | 638A74 | Floor latch cover |
| 19 | 56910 | Screw |
| 20 | W711849 | Floor latch bolts (2 required) |
| 21 | W714278 | Cushion frame-to-pivot tube assembly bolts (4 required) |
| 22 | 14B720 | LH seat wire harness |
| 23 | 14F042 | Power-Fold Seat Module (PFSM) |
| 24 | 14B719 | Seat wire harness |
| 25 | W504694 | Screw (2 required) |
| 26 | 60512 | Load floor panel |
| 27 | 14B720 | RH seat wire harness |
- For additional information, refer to the appropriate procedures in this service information.
