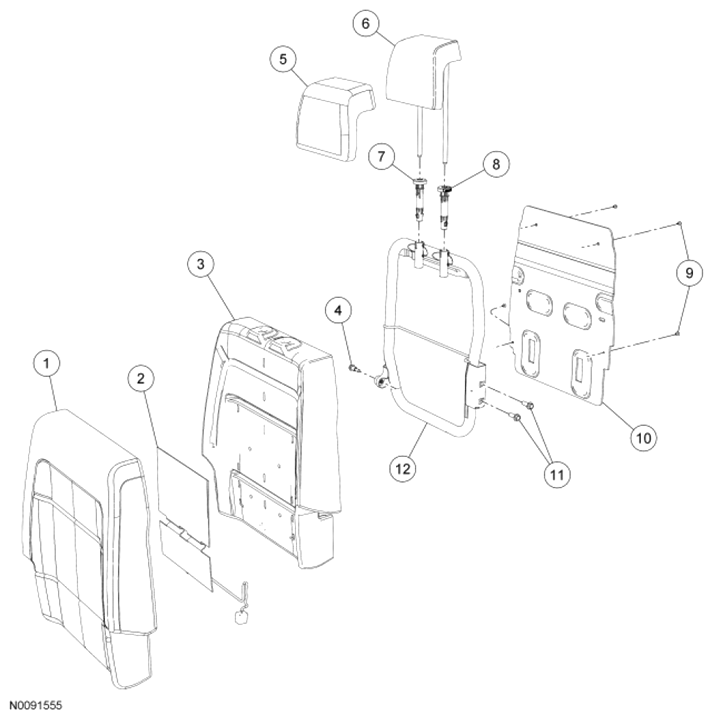

40 Percent Backrest
NOTE:
LH shown in illustration, RH similar.
SEAT PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 66601 | Backrest trim cover |
| 2 | 14D696 | Backrest heater mat (power-fold seat only, if equipped) |
| 3 | 66801 | Backrest foam pad |
| 4 | W790112 | Pivot bolt |
| 5 | 501A04 | Head restraint trim cover |
| 6 | 611A08 | Head restraint assembly |
| 7 | 610A16 | Head restraint guide, slave |
| 8 | 610A16 | Head restraint guide, master |
| 9 | 56910 | Backrest hard back panel-to-backrest frame screws (4 required) |
| 10 | 60508 | Backrest hard back panel, RH quad bucket |
| 10 | 60509 | Backrest hard back panel, LH quad bucket |
| 10 | 60508 | Backrest hard back panel, 40 percent |
| 11 | W790117 | Recliner-to-backrest bolts |
| 12 | 613A38 | Backrest frame, RH quad bucket or 40 percent |
| 12 | 613A39 | Backrest frame, LH quad bucket |
