Selector Lever Knob: Removal

Vehicles with a Transmission Control Switch (TCS)

1. Remove the selector lever trim ring.

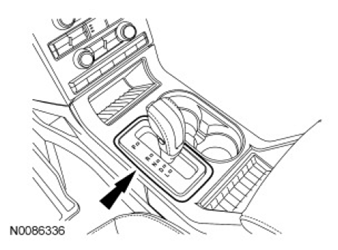

   Fig 1: Locating Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
2. Lift the armrest and remove the center console cup holder panel.

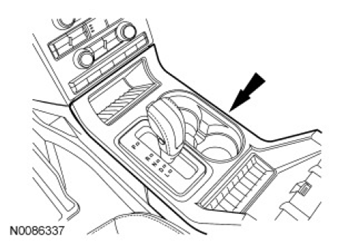

   Fig 2: Locating Center Console Cup Holder Panel

   Courtesy of FORD MOTOR CO.

   All vehicles

3. Slide the lower selector lever knob bezel downward.

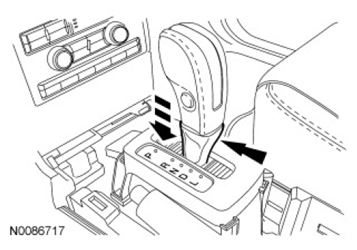

   Fig 3: Sliding Lower Selector Lever Knob Bezel Downward

   Courtesy of FORD MOTOR CO.
4. Remove the 2 screws from the selector lever knob.

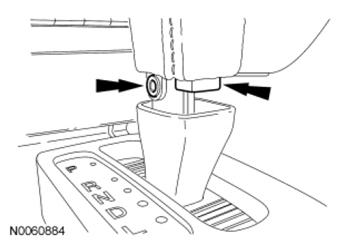

   Fig 4: Locating Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.

   Vehicles without a TCS

5. Remove the selector lever knob.

   Vehicles with a TCS

6. NOTE: Selector lever removed for clarity.

   Release the 4 tabs and position the selector lever trim ring aside to gain access to the Transmission Control Switch (TCS) electrical connector.

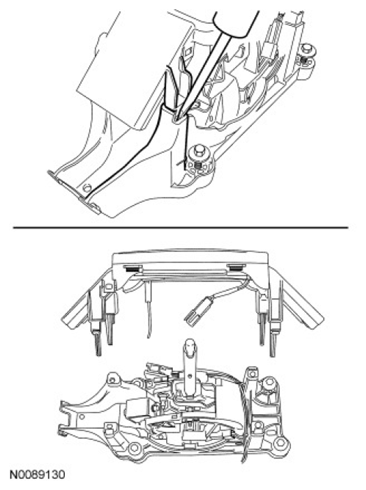

   Fig 5: Positioning Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
7. Disconnect the TCS  electrical connector, route the wiring harness out of the selector lever bezel and remove the selector lever knob and knob bezel.

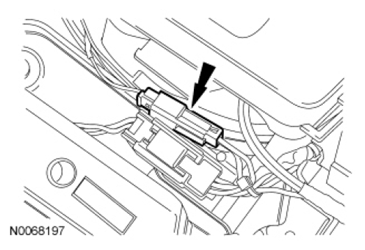

   Fig 6: Locating TCS Electrical Connector

   Courtesy of FORD MOTOR CO.
