Selector Lever Knob: Installation

Vehicles with a TCS

1. Route the TCS  wiring harness through the selector lever bezel and connect the TCS  electrical connector.

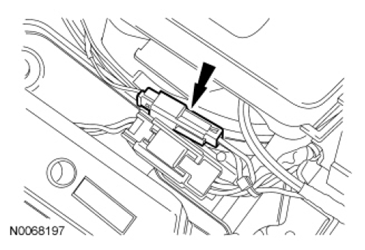

   Fig 1: Locating TCS Electrical Connector

   Courtesy of FORD MOTOR CO.
2. NOTE: Selector lever removed for clarity.

   Position the selector lever bezel in place.

   • Be sure the 4 tabs are locked in place.

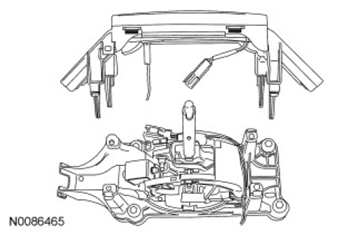

   Fig 2: Locating Selector Lever Tabs

   Courtesy of FORD MOTOR CO.

   All vehicles

3. Position the selector lever knob and knob bezel in place and install the screws.

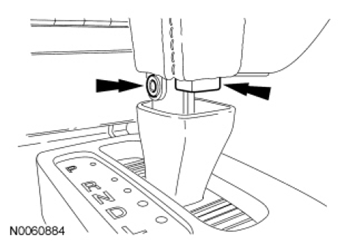

   Fig 3: Locating Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.
4. Slide the lower selector lever knob bezel up and snap it into place.

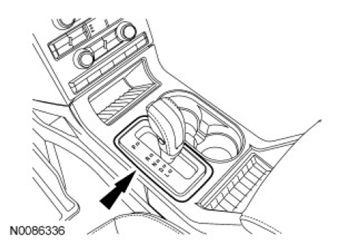

   Fig 4: Sliding Lower Selector Lever Knob Bezel

   Courtesy of FORD MOTOR CO.

   Vehicles with a TCS

5. Install the upper console panel.

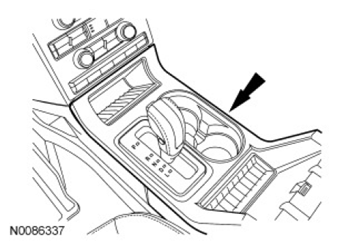

   Fig 5: Locating Upper Console Panel

   Courtesy of FORD MOTOR CO.
6. Install the selector lever bezel trim ring.

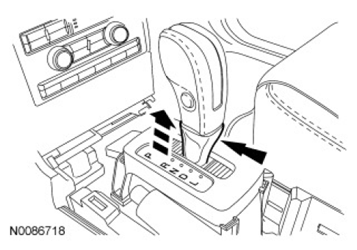

   Fig 6: Locating Selector Lever Bezel Trim Ring

   Courtesy of FORD MOTOR CO.
