Selector Lever Bezel: Removal

All vehicles

1. Remove the selector lever bezel trim ring.

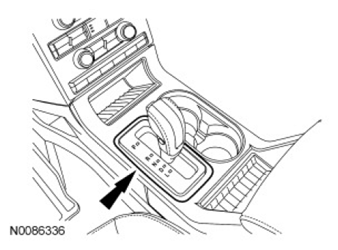

   Fig 1: Locating Selector Lever Bezel Trim Ring

   Courtesy of FORD MOTOR CO.
2. Lift the armrest and remove the upper console panel.

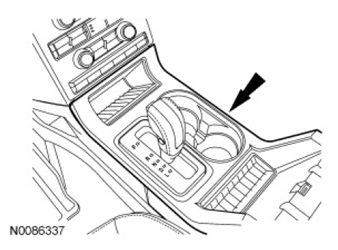

   Fig 2: Locating Upper Console Panel

   Courtesy of FORD MOTOR CO.
3. Slide the lower selector lever knob bezel downward.

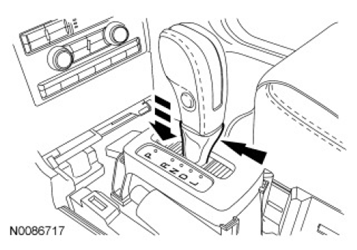

   Fig 3: Sliding Lower Selector Lever Knob Bezel Downward

   Courtesy of FORD MOTOR CO.
4. Remove the 2 screws from the selector lever knob.

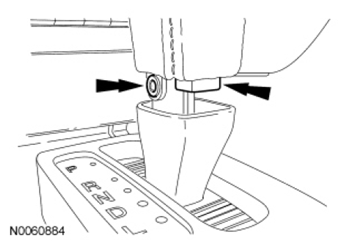

   Fig 4: Locating Selector Lever Knob Screws

   Courtesy of FORD MOTOR CO.

   Vehicles not equipped with a Transmission Control Switch (TCS)

5. Remove the selector lever knob and knob bezel.

   All vehicles

6. NOTE: Selector lever removed for clarity.

   Release the 4 selector lever bezel tabs and position the selector lever bezel aside to gain access to the bezel light and the Transmission Control Switch (TCS) connector, if equipped.

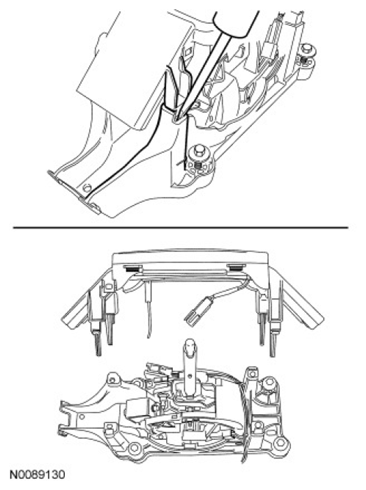

   Fig 5: Positioning Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
7. Disconnect the selector lever bezel light electrical connector from the selector lever.

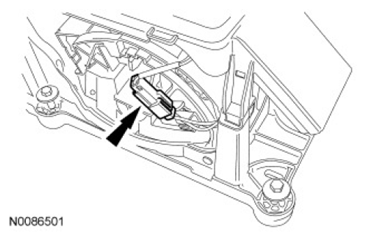

   Fig 6: Locating Selector Lever Bezel Light Electrical Connector

   Courtesy of FORD MOTOR CO.

   Vehicles equipped with a TCS

8. Disconnect the TCS  connector, route the wiring harness out of the selector lever bezel and remove the selector lever knob and knob bezel.

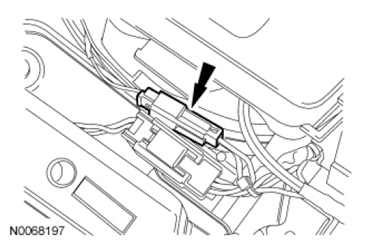

   Fig 7: Locating TCS Electrical Connector

   Courtesy of FORD MOTOR CO.

   All vehicles

9. Remove the selector lever bezel.
