Pump Chain and Sprocket

  1. Clean and inspect the pump chain and sprocket assembly for damage or wear and install new components as necessary.
    • Check the drive chain for wear, damage, stretching or tightness of the chain links.
    • Check the chain sprockets for excessive wear in the chain contact areas and thrust washer areas.

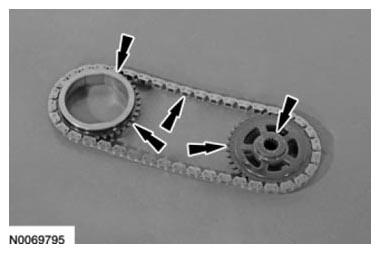

      Fig 1: Locating Pump Chain And Sprocket Damage Areas
      G07467870Courtesy of FORD MOTOR CO.
