In-Vehicle Temperature Sensor: Notes

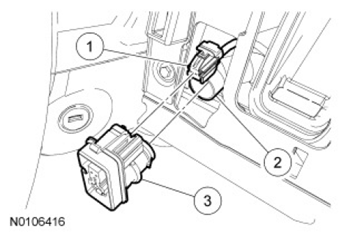

Fig 1: Exploded View Of In-Vehicle Temperature Sensor, Aspirator Hose And Electrical Connector

Courtesy of FORD MOTOR CO.

IN-VEHICLE TEMPERATURE SENSOR PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	In-vehicle temperature sensor electrical connector (part of 14401)
2	19D888	In-vehicle temperature sensor aspirator hose
3	19C734	In-vehicle temperature sensor
