Fuel Pump (FP) Module Mounted Sender

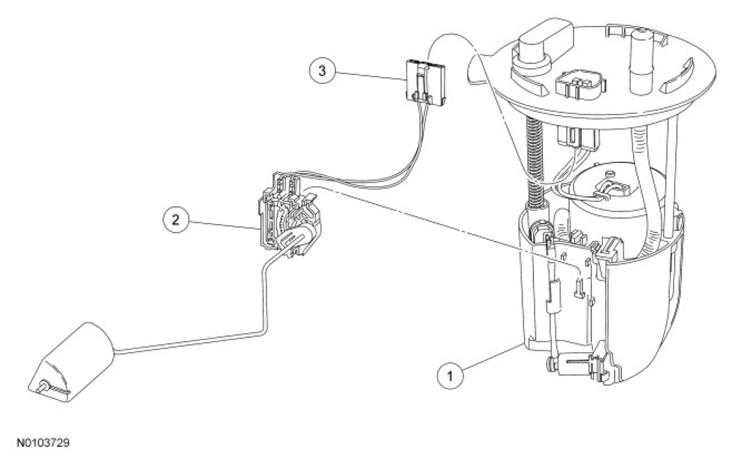

Fig 1: Exploded View Of Fuel Pump (FP) Module Mounted Sender
G07465307Courtesy of FORD MOTOR CO.
FUEL PUMP (FP) MODULE MOUNTED SENDER PARTS DESCRIPTION CHART

Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 9A299 Fuel level sender
3 - Fuel level sender electrical connector (part of 9A299)
