Fuel Level Sensor Assembly Mounted Sender

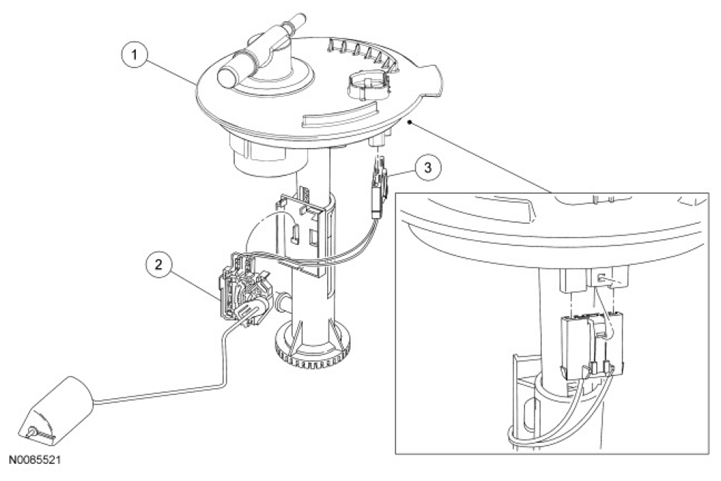

Fig 1: Exploded View Of Fuel Level Sensor Assembly, Sender And Electrical Connector
G07465308Courtesy of FORD MOTOR CO.
FUEL LEVEL SENSOR ASSEMBLY MOUNTED SENDER PARTS DESCRIPTION CHART

Item Part Number Description
1 9275 Fuel level sensor assembly
2 9A299 Fuel level sender
3 - Fuel level sender electrical connector (part of 9A299)
