Home >> Ford >> 2011 >> Flex SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Occupant Classification Sensor 1 Connector - C3324

Occupant Classification Sensor 1 Connector - C3324

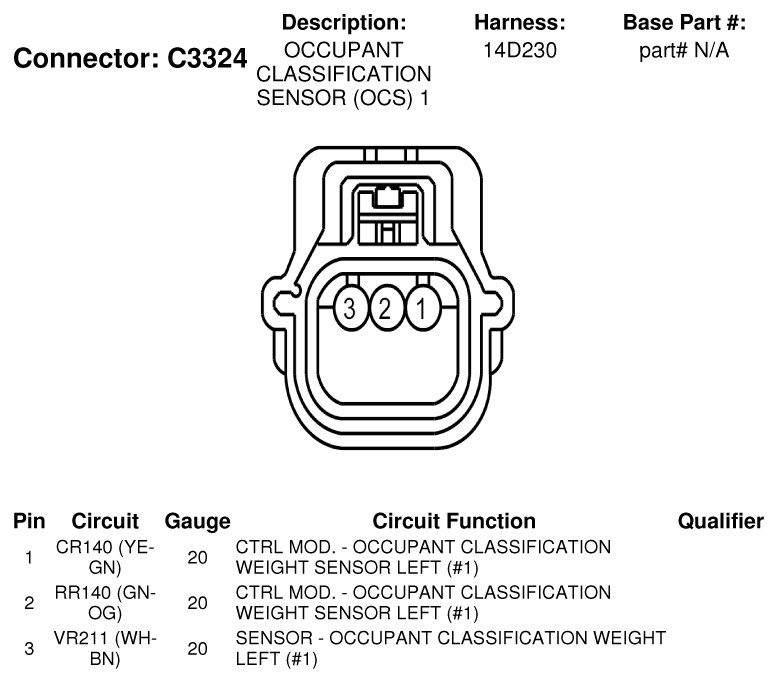

Fig 1: Occupant Classification Sensor 1 Connector End View (C3324)

G07335131

Courtesy of FORD MOTOR CO.
