Fuel Level Sensor Connector - C3271

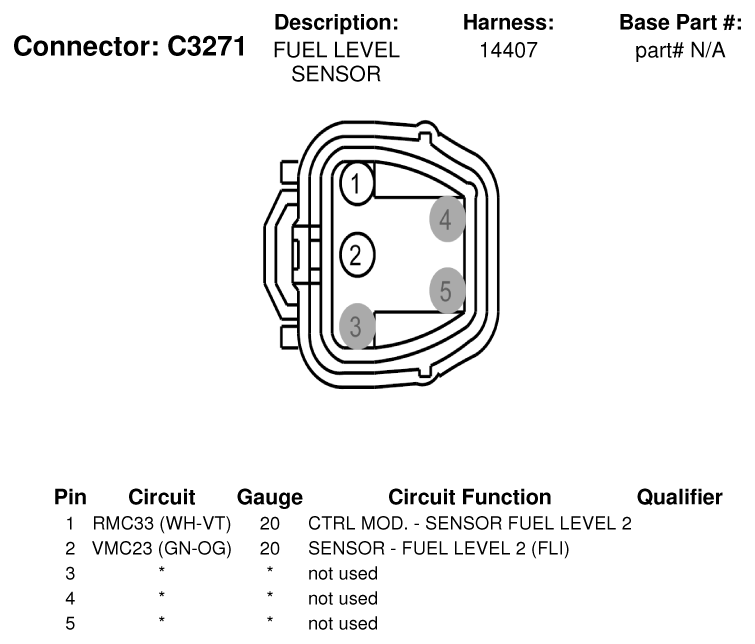

Fig 1: Fuel Level Sensor Connector End View (C3271)

G07335126

Courtesy of FORD MOTOR CO.
