Collapsible Steering Column Module Connector - C2360

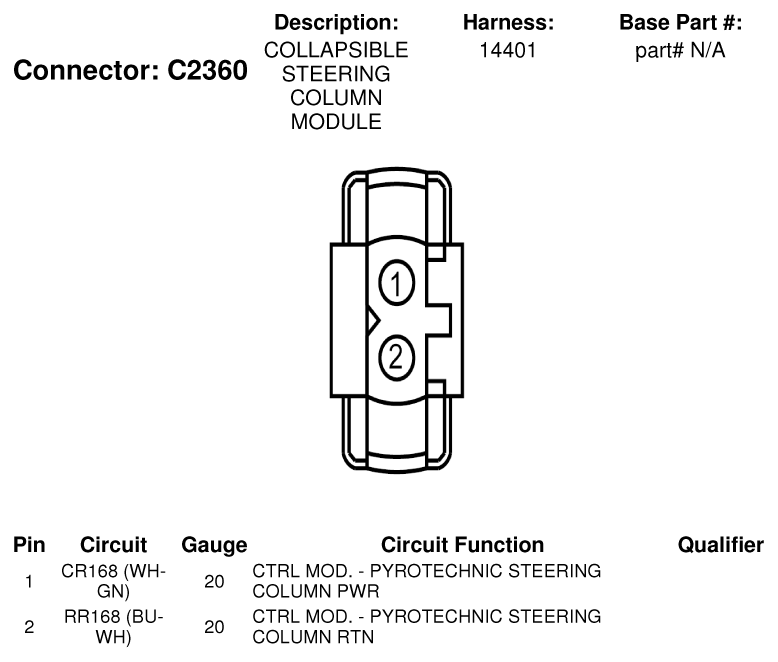

Fig 1: Collapsible Steering Column Module Connector End View (C2360)

G07335069

Courtesy of FORD MOTOR CO.
