Steering Angle Sensor Module Connector - C2412

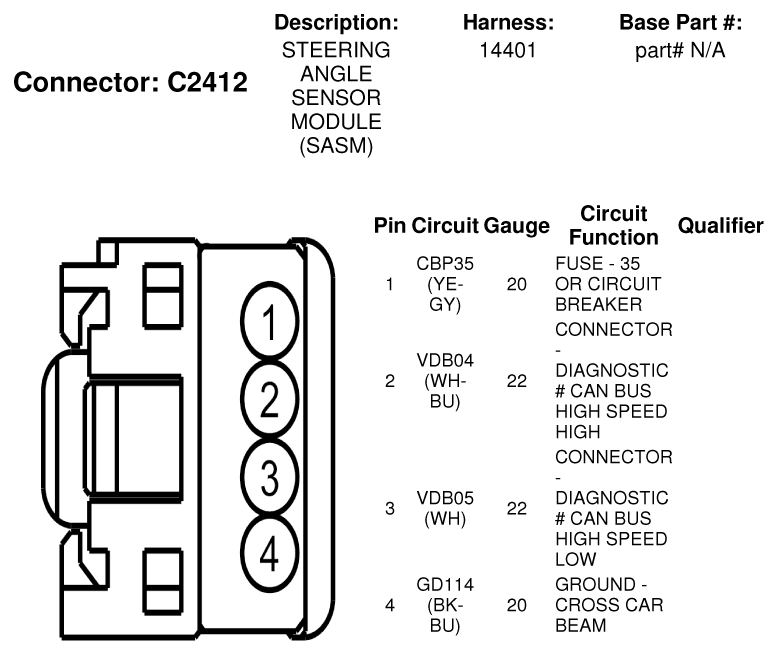

Fig 1: Steering Angle Sensor Module Connector End View (C2412)

G07335071

Courtesy of FORD MOTOR CO.
