Steering Column Lock Module: Notes

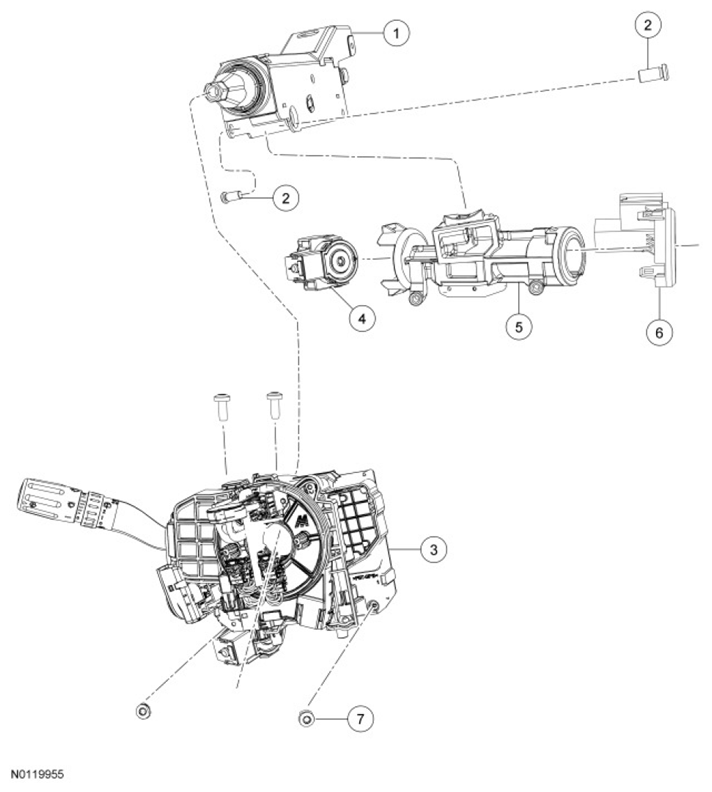

Fig 1: Exploded View Of Steering Column Lock Module Components
G07463361Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 3C529 Steering column
2 - Sheer bolts (part of 3F527)
3 - Multifunction switch assembly
4 11572 Ignition switch
5 3F527 Steering column lock module
6 15607 PATS
7 W504694 Multifunction switch assembly screws
