Removal and Installation

Remove the driver air bag module. For additional information, REFER to SUPPLEMENTAL RESTRAINT SYSTEM .
Turn the steering wheel to the straight-ahead position.

Fig 1: Identifying Steering Wheel In Straight-Ahead Position
Courtesy of FORD MOTOR CO.
Remove the steering wheel as shown in illustration.
1. Disconnect the electrical connector.
2. Remove the bolt and the steering wheel.
  - To install, tighten the steering wheel bolt to 40 Nm (30 lb-ft).

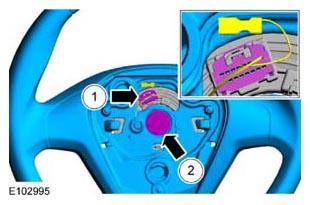

Fig 2: Locating Steering Wheel Electrical Connector And Steering Wheel Bolt
Courtesy of FORD MOTOR CO.
Tape the clockspring center rotor to the outer housing to keep it from rotating.

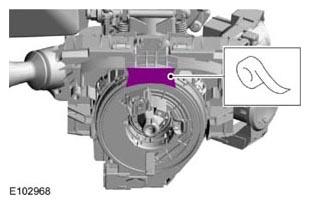

Fig 3: Taping Clockspring Center Rotor To Outer Housing
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
