Power Flow: Neutral

WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

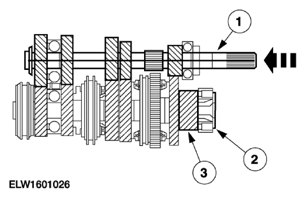

Fig 1: Manual Transmission Power Flow Diagram (Neutral)
G08867319Courtesy of FORD MOTOR CO.
1 Input shaft
2 Output shaft
3 Output pinion
