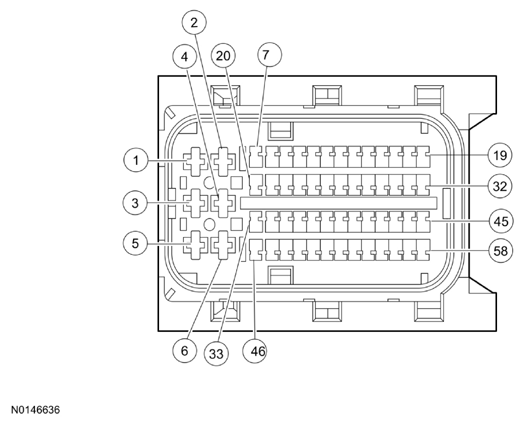

Transmission Control Module (TCM) Connector C1750A
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Description |
| 1 |
Power |
| 2 |
Power |
| 3 |
Ground |
| 4 |
Ground |
| 5 |
Ground |
| 6 |
Ground |
| 11 |
Overdrive (O/D) Cancel |
| 18 |
Power |
| 31 |
Ignition Run Start |
| 34 |
Can Bus High Speed High |
| 35 |
Can Bus High Speed Low |
| 39 |
P/N Switch/Clutch 2 |
| 40 |
REVERSE Lamp |
| 49 |
Brake Shift Interlock Actuator (BSIA) |
