Wheel Knuckle: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Installer, Halfshaft 204-161 (T97P-1175-A) |
|
| Remover, Front Wheel Hub 205-D070 (D93P-1175-B) or equivalent |
|
| Remover, Tie-Rod End 211-001 (TOOL-3290-D) |

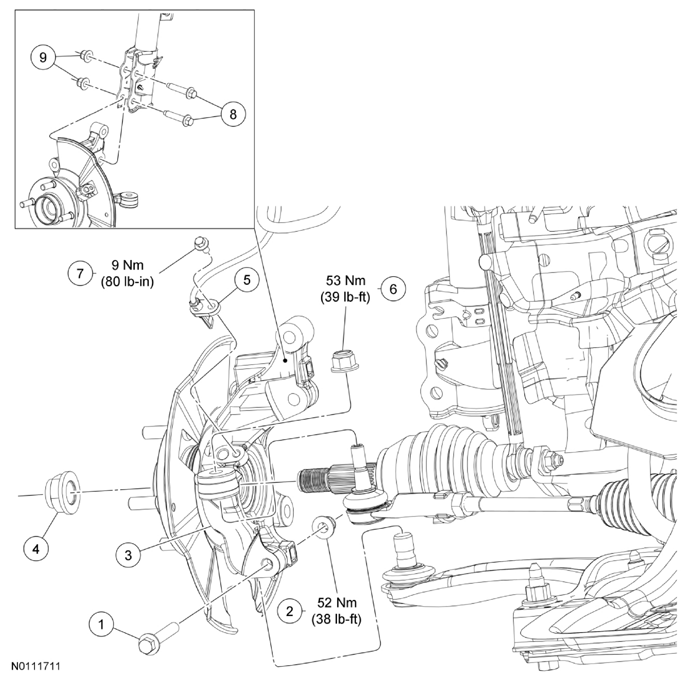

| Item | Part Number | Description |
|---|---|---|
| 1 | W709618 | Ball joint bolt |
| 2 | W520203 | Ball joint nut |
| 3 | 3K186 LH/3K185 RH | Wheel knuckle and hub assembly |
| 4 | W713640 | Wheel hub nut |
| 5 | 2C204 | Wheel speed sensor |
| 6 | W520204 | Tie-rod end nut |
| 7 | W500011 | Wheel speed sensor bolt |
| 8 | W709618 | Wheel knuckle-to-strut bolt (2 required) |
| 9 | W520203 | Wheel knuckle-to-strut nut (2 required) |
