Wheel Bearing: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Installer, Wheel Hub Bearing Cup 205-147 |
|
| Pinion Bearing Cone Remover 205-D0002(D79L-4621-A) or equivalent |
|
| Remover/Installer, Wheel Hub Cup 204-020 |
|
| Step Plate 205-117 |

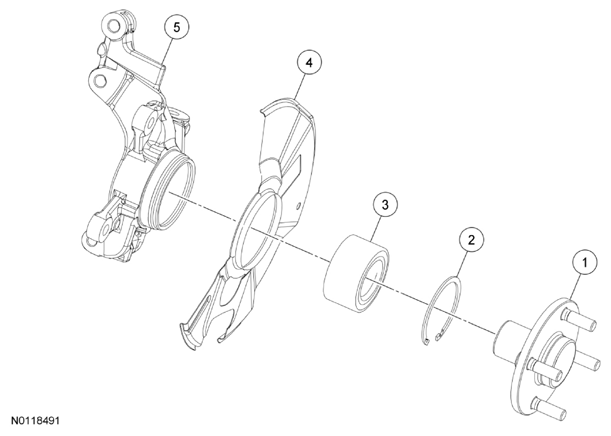

| Item | Part Number | Description |
|---|---|---|
| 1 | 1104 | Wheel hub |
| 2 | 7059 | Snap ring |
| 3 | 1215 | Wheel bearing |
| 4 | 2K005LH/ 2K004RH | Brake disc shield |
| 5 | 3K186 LH/ 3K185 RH | Wheel knuckle |
