Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

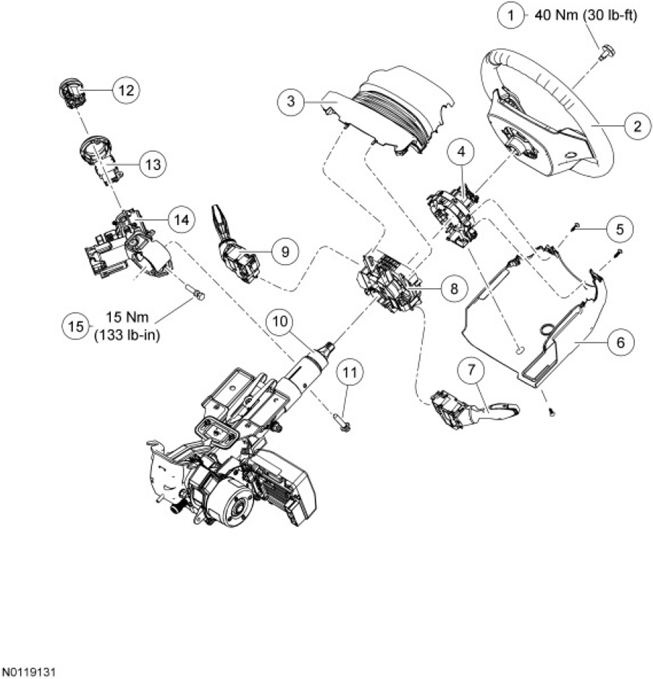

| Item | Part Number | Description |
|---|---|---|
| 1 | W750985 | Steering wheel bolt |
| 2 | 3600 | Steering wheel |
| 3 | 3530 | Upper steering column shroud |
| 4 | 14A664 | Clockspring |
| 5 | W701928 | Steering column shroud bolt (2 required) |
| 6 | 3530 | Lower steering column shroud |
| 7 | 13341 | Switch assembly |
| 8 | 3F791 | Steering column multifunction switch |
| 9 | 17A553 | Switch assembly wiper/washer |
| 10 | 3C529 | Steering column |
| 11 | - | Steering column lock bolt |
| 12 | 11582 | Ignition switch cylinder |
| 13 | 15607 | Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 14 | 3F790 | Ignition switch housing |
| 15 | 66154 | Ignition switch housing bolt (part of 3F790) |
