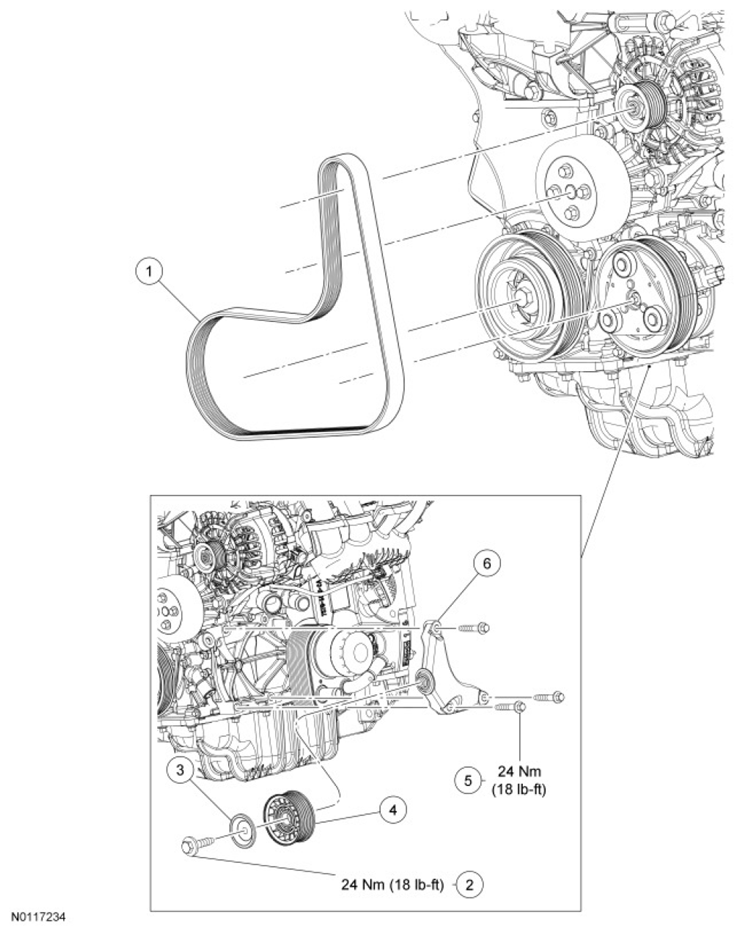

Front End Accessory Drive (FEAD) - Exploded View
FRONT END ACCESSORY DRIVE (FEAD) COMPONENT DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6C301 | Accessory drive belt |
| 2 | W709601 | Accessory drive belt idler pulley (without A/C only) |
| 3 | 8687 | Accessory drive belt idler pulley washer (without A/C only) |
| 4 | 6C344 | Accessory drive belt idler pulley (without A/C only) |
| 5 | W500311 | Accessory drive belt idler pulley bracket bolt (without A/C only) (3 required) |
| 6 | 8680 | Accessory drive belt idler pulley bracket (without A/C only) |
- For additional information, refer to the appropriate procedures in this information.
