Instrument Panel Mounting Fasteners

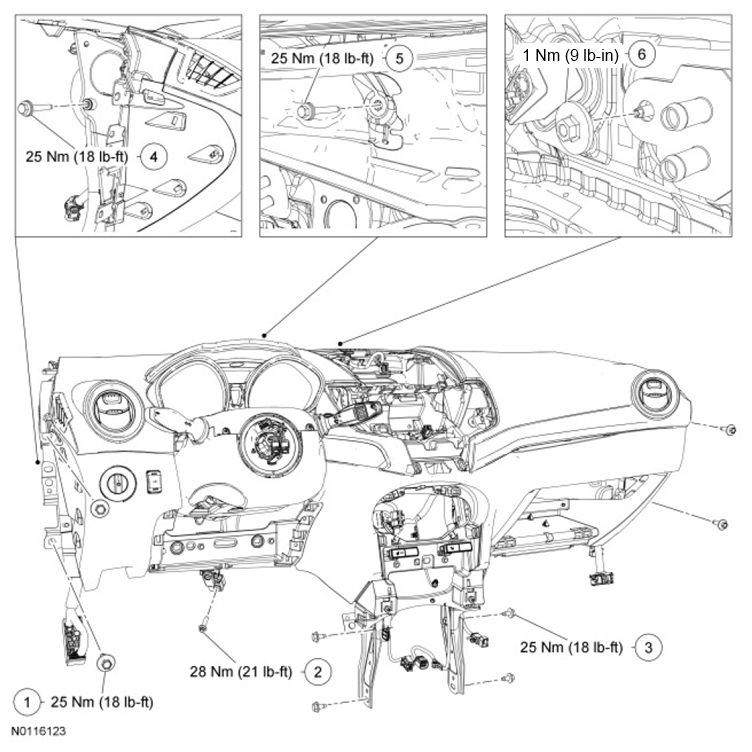

Fig 1: Exploded View Of Instrument Panel Mounting Fasteners With Torque Specifications

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	W711557	Instrument panel screw (4 required)
2	3R827	Steering column shaft-to-steering column bolt
3	W701096	In-vehicle cross car beam to floor pan brace screw (2 required)
4	W711563	LH instrument panel bolt
5	W711563	Instrument panel-to-front of dash bolt
6	18N316	Exterior heater core housing nut

For additional information, refer to the appropriate procedures in this information.
