HVAC Module Connector - C228A
HVAC Module Connector - C228A

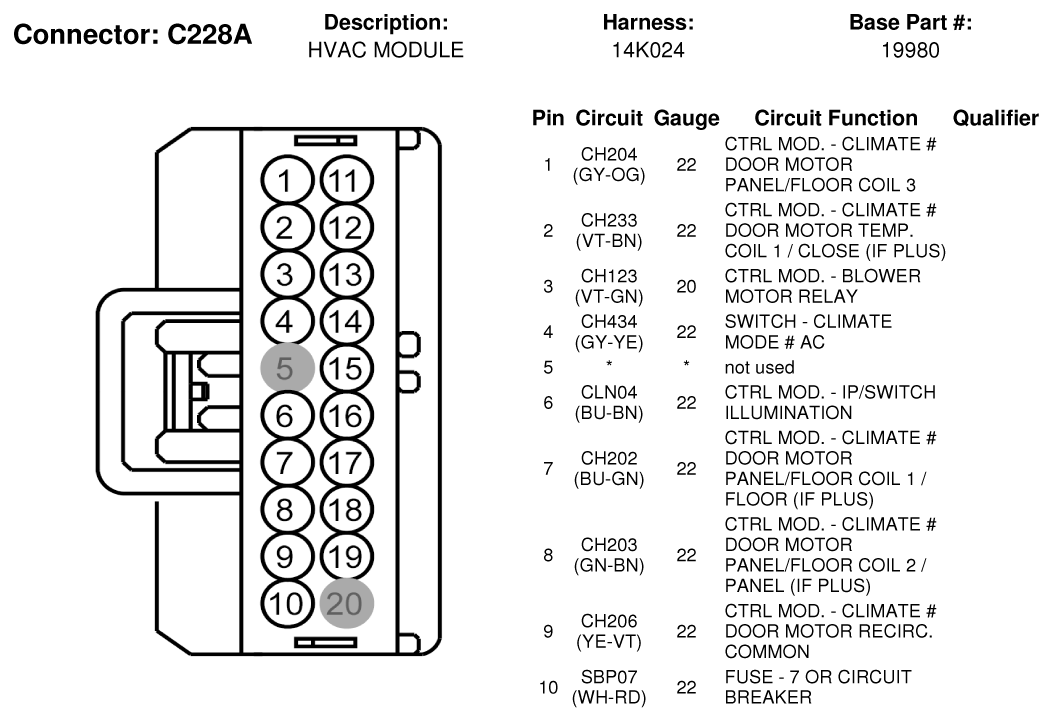

Fig 1: HVAC Module Connector End View (C228A) (1 Of 2)
Courtesy of FORD MOTOR CO.

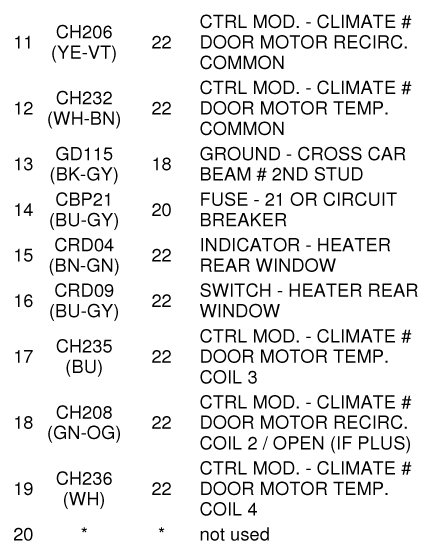

Fig 2: HVAC Module Connector End View (C228A) (2 Of 2)
Courtesy of FORD MOTOR CO.
